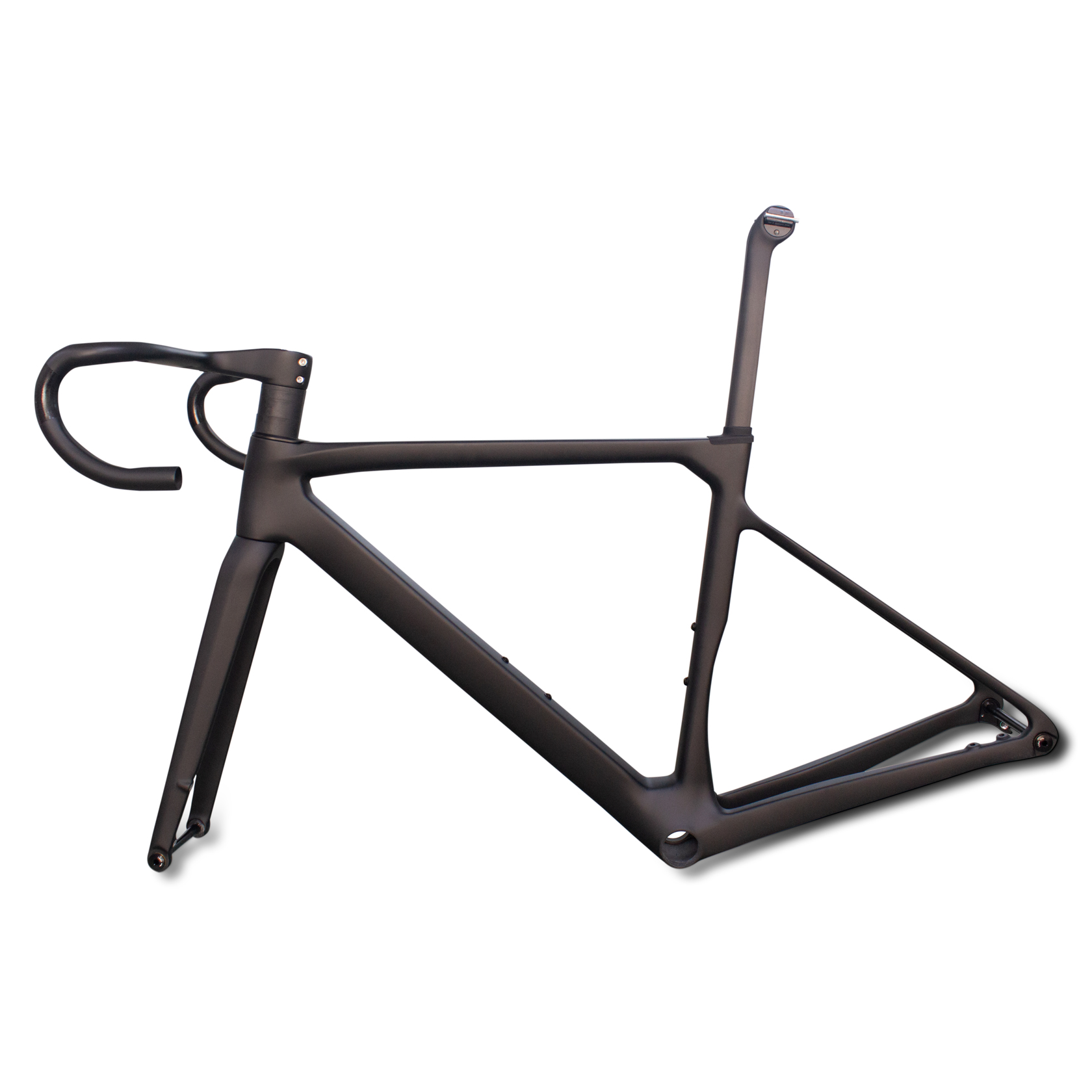

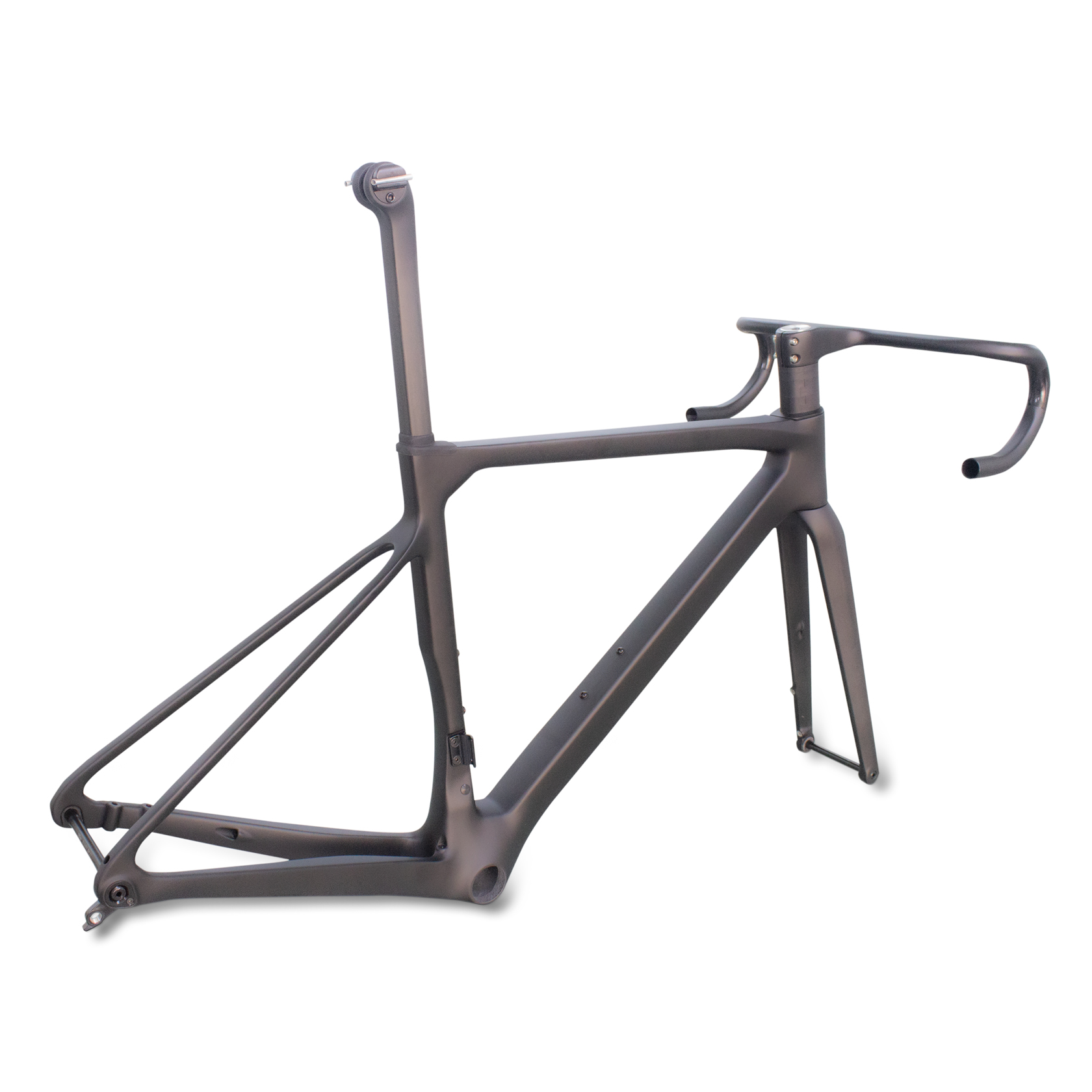

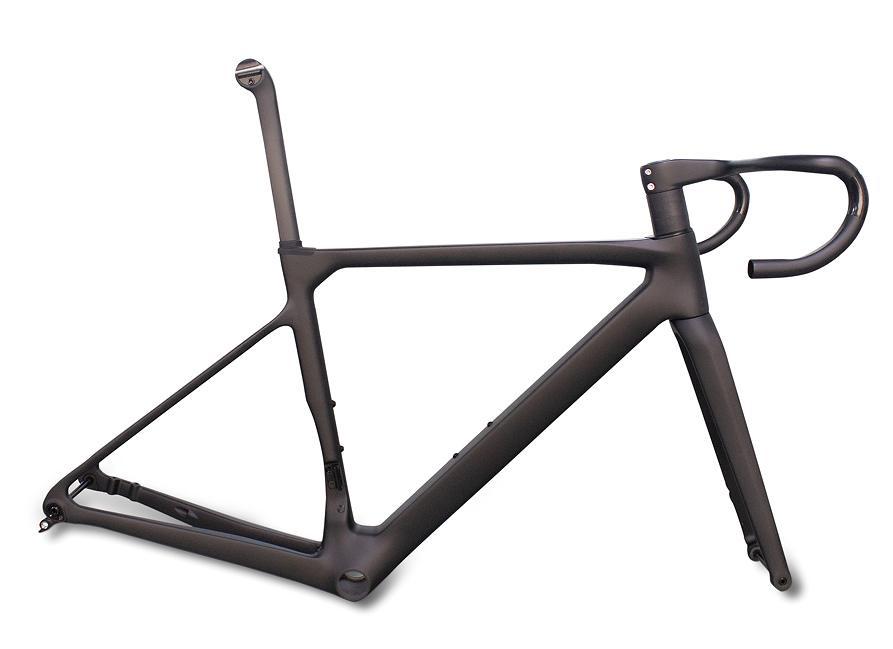

Super Light Carbon Road Disc Frameset (ST-R25D)
share
Specifications
Mode: ST-R25D Super Light Disc
Material: Toray Carbon Fiber T800
Finish: UD/3K, Matte/Glossy
Size: S/49cm, M/52cm, L/54cm, XL/56cm, XXL/59cm
Handlebar Size: 380mm/400mm/420mm/440mm
Stem Size: 90mm/100mm/110mm/120mm
Frame Weight: S 790g, M 820g, L 840g, XL 865g, XXL 920g
Fork Weight: 365+/-20g
Material: Toray T1000 HMF Carbon Fiber
Head Tube: 1-1/8" to 1-1/2"
Seat Post: Special 400mm (160g+/-15g)
Bottom Bracket: BB86 Full Carbon
Thru Axle: Rear 12*142mm, Front 12*100mm
Tire: 700*32C
Brake Type: Flat Mount
Test Standard: ISO 4210
Laden Weight: 115KG
Mode: ST-R25D Super Light Disc
Material: Toray Carbon Fiber T800
Finish: UD/3K, Matte/Glossy
Size: S/49cm, M/52cm, L/54cm, XL/56cm, XXL/59cm
Handlebar Size: 380mm/400mm/420mm/440mm
Stem Size: 90mm/100mm/110mm/120mm
Frame Weight: S 790g, M 820g, L 840g, XL 865g, XXL 920g
Fork Weight: 365+/-20g
Material: Toray T1000 HMF Carbon Fiber
Head Tube: 1-1/8" to 1-1/2"
Seat Post: Special 400mm (160g+/-15g)
Bottom Bracket: BB86 Full Carbon
Thru Axle: Rear 12*142mm, Front 12*100mm
Tire: 700*32C
Brake Type: Flat Mount
Test Standard: ISO 4210
Laden Weight: 115KG
