Rim Pump Test

1

  1. Test Conditions：


    1. Tubeless tire model: MAXXIS（700*28C）95psi;

    2. Inflate to 110% of the maximum air pressure value marked on the tire.

  1. Judgment Criteria:


1. Installation: Confirm whether the pump can be used to pump up smoothly, and no air leak age is alllowed;

When the tire pressure reaches the maximum tire pressure indicated on the tire, the tire will completely cover the rim, and the safety line will be fully exposed.

2. The parallelism of the brake side after pumping up is ≤0.2mm; after the TL and HL series are pumped up, the tire cannot slide out of the tire seat after the tire is removed by air pressure.

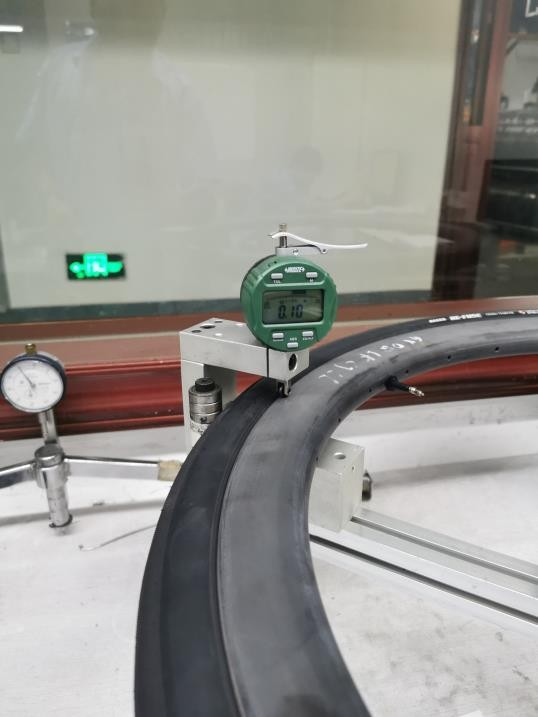

Max：0.1mm

rim test2-Max：0.1mm.png

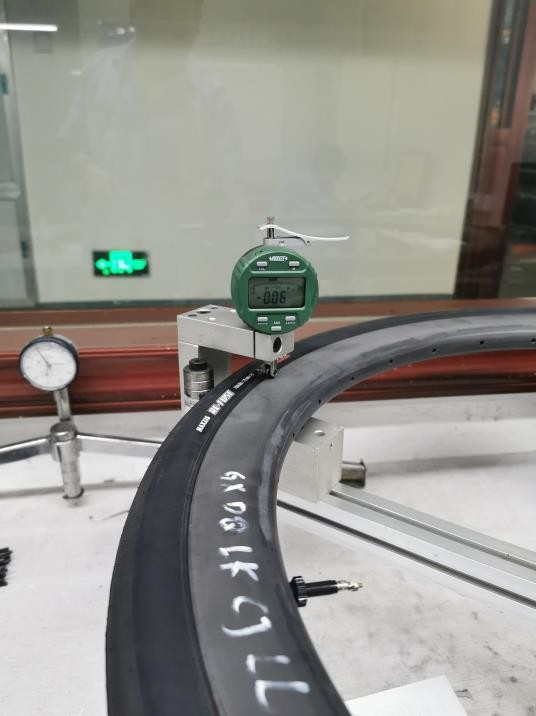

Min：-0.06mm

rim test2-Min：-0.06mm.png
